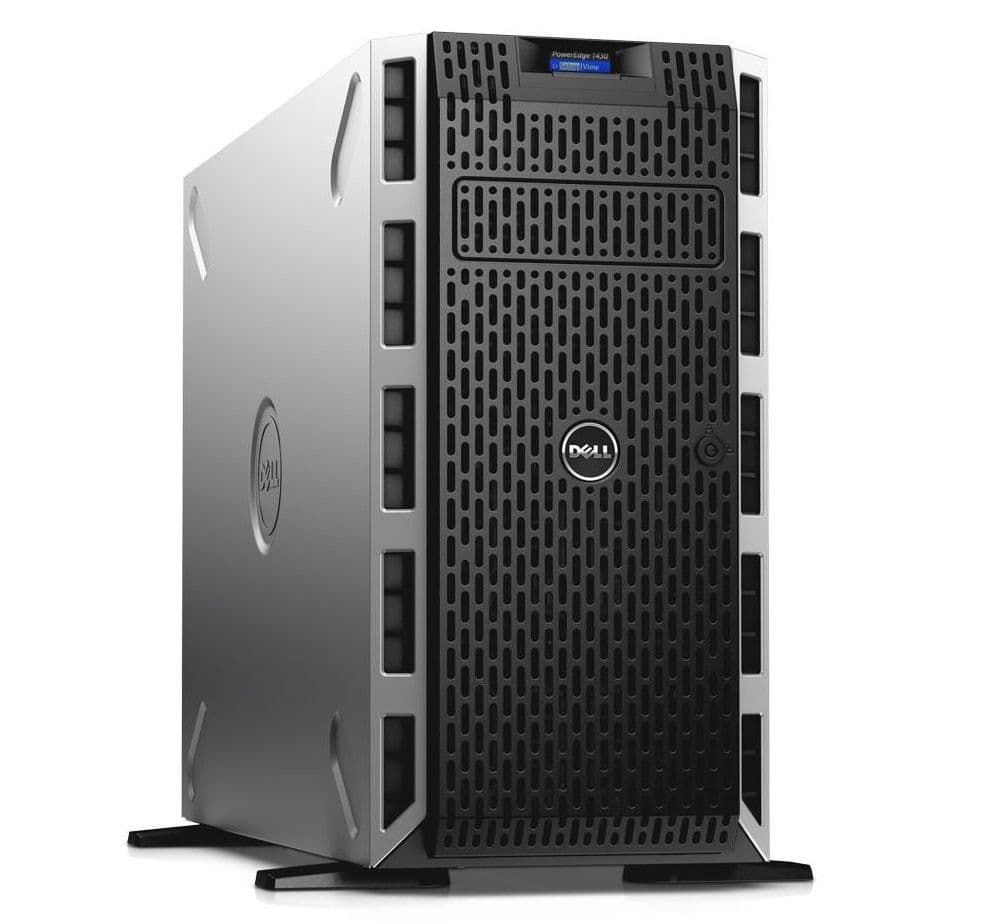

The PowerEdge T430 is an excellent fit for a wide range of office workloads, including workgroup collaboration and productivity applications, mail and messaging, file and print serving, and web serving. The T430 is an ideal choice for small office and remote office/branch office (ROBO) sites in need of single-server performance and capacity

Dell PowerEdge T430 – Technical Specifications

Key Highlights:
Short 22" depth and quiet office acoustics
Intel® Xeon® processor E5-2600 v4 product family
12 × DIMMs DDR4 memory
4 × PCIe 3.0, 2 × PCIe 2.0 slots

Form Factor: Tower (5U rackable)

Dimensions & Weight:

Tower:
Height: 430.3 mm (17.04 in); with foot 443.3 mm (17.45 in); with wheel 471.3 mm (18.55 in)
Width: 218 mm (8.58 in); with foot 304.5 mm (11.98 in)
Depth (without bezel): 542.2 mm (21.33 in) to PSU handle 578.42 mm (22.77 in)
Depth (with bezel): 558.6 mm (21.99 in) to PSU handle 594.82 mm (23.41 in)

Rack:
Height: 218 mm (8.58 in)
Width: 430.3 mm (16.94 in) without ear; 482.40 mm (18.99 in) with ear
Depth (min): 538.4 mm (21.2 in) from rack ear to rear wall
Depth (max): 584.05 mm (22.99 in)

Processors:
Intel® Xeon® E5-2600 v4 family
Chipset: Intel C610 series
Processor sockets: 2
Internal interconnect: 2 × QPI links at 9.6 GT/s
Cache: 2.5MB per core; options: 4, 6, 8, 10, 12, 14 cores

Memory:
12 DIMM slots
4GB/8GB/16GB/32GB DDR4 up to 2400MT/s

I/O Slots: Up to 6 full-height slots
4 × PCIe 3.0
2 × PCIe 2.0

RAID Controller: Up to 1 internal + 1 external controller
Supported: PERC H730, PERC H730P, PERC H830

Network Controller: 2 × 1GbE LOMs

Hard Drives: SAS, SATA, Nearline SAS, SSD

Communications: Broadcom® 5720
(See “Additional Network Cards” for supported NICs & HBAs)

Power Supply:
495W, 750W, 1100W PSU
450W cabled non-redundant PSU

Availability:
Hot-plug drive bays
High-efficiency, hot-plug, redundant PSUs
Fan redundancy
Extended thermal support
Dell fault-resilient memory
Internal dual SD modules

Systems Management:
IPMI 2.0 compliant
Dell OpenManage Essentials, Mobile, Power Center
Remote: iDRAC8 with Lifecycle Controller (Express default, Enterprise upgrade)
vFlash media: 8GB or 16GB (upgrade)

Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware® vCenter®

Connections:
HP Operations Manager
IBM Tivoli® Netcool®
CA Network & Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager

Rack Support: All configurations support rackable, except 3.5" × 4 cabled chassis configuration

Optional Hypervisors:
Citrix® XenServer®
VMware vSphere® ESXi™
Red Hat® Enterprise Virtualization

Operating Systems:
Microsoft® Windows Server® 2008 R2, 2012, 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
